کنترلرهای دما آتونیکس سری THD:
Autonics Temperature Controllers THD Series:

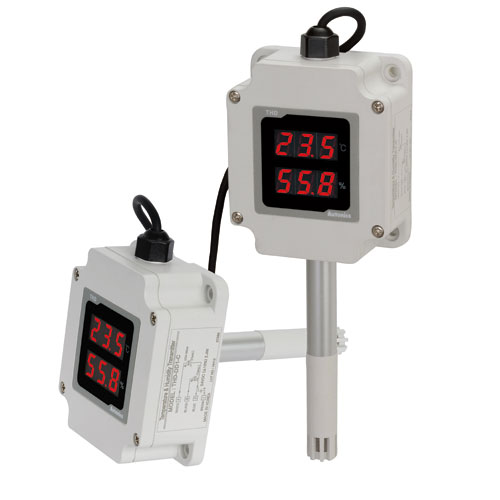

Indoor, Duct & Wall mounting type Temperature/Humidity transducer
Temperature/Humidity transducer THD series is high sensitivity temp./humidity sensor with compact size that supports various outputs and communication function for user’s convenience. The series realizes the optimal temp./humidity control connecting with Autonics temperature controllers and panel meters. Also, the series allows more diverse user’s selection by providing indoor type (THD-R series), duct mount type (THD-D series) and wall mount type (THD-W) as its working environment.
Main features
Compact design●
Built-in temp./humidity sensor●
7 Segment LED Display (THD-DD/THD-WD)●
Various output modes DC4-20 mA, 1-5 VDC, RS485 (Modbus RTU)●
Wide range of temp./humidity measurement●
to 60.0 ℃ / 0.0 to 99.9 % RH -19/9
● Communication speed: 115200 bps
ویژگی های اصلی:
● طراحی جمع و جور
● داراي 2 سنسور داخلي دما و رطوبت (سنسور دما / رطوبت توکار)
● داراي نمایشگر LED 7 سگمنت در سري (THD-DD / THD-WD)
● داراي خروجي هاي متنوع: DC4-20mA، 1-5VDC، RS485 (MODBUS RTU)
● قابليت اندازه گيري پهناي گسترده اي از دما و رطوبت (اندازه گیری طیف گسترده ای از دما / رطوبت):
to 60.0 ℃ / 0.0 to 99.9 % RH -19/9
● سرعت انتقال اطلاعات: 115200 بیت در ثانیه
